Honeycomb Panel Project Fit: Room-by-Room All-Aluminum Product Matching

Specifying a honeycomb panel for an interior or furniture project is rarely a one-material decision. The room type, moisture level, surface size, load and finish all change which panel and system should be purchased. For buyers in the research and evaluation stage, the practical question is not simply which honeycomb panel is available, but which all-aluminum honeycomb product fits a particular project zone.

Nanbeiwang Aluminum, operated by Guangdong Nanbeiwang Smart Home Co., Ltd., supplies a family of all-aluminum honeycomb boards and systems for whole-house customization, from standard honeycomb panels to wall panels, ceilings and interior doors. This article outlines the project-fit logic that helps architects, cabinet factories, distributors and renovation teams match panels to kitchens, bathrooms, walls, ceilings and whole-home programs.

Honeycomb panels are often specified in kitchen and bathroom zones where zero formaldehyde, waterproof, fireproof and anti-mold properties are required.

Why a Project Zone Changes Honeycomb Panel Selection

Kitchens, bathrooms and laundry rooms are the most demanding interior environments for panel materials. Steam, splash water, cleaning products and continuous humidity create conditions where moisture-sensitive boards may swell, warp or develop mold. In these zones, the project specification should include materials that can handle water exposure without relying on chemical additives.

Nanbeiwang Aluminum describes this application in clear terms: the product is designed for indoor, high-humidity environments such as kitchens and bathrooms. It functions as a cabinet board, wall panel or structural board, and it must be used with aluminum profiles and hardware fittings. Special requirements for this scenario include zero formaldehyde, waterproof, fireproof and anti-mold properties.

In simple terms, a wall panel in a hotel corridor and a cabinet board in a bathroom should not be selected with the same assumptions. A project-fit evaluation must start with the room condition, then move to the material structure, surface finish and installation system.

Industry Context: Aluminum Honeycomb in Construction and Decoration

Aluminum honeycomb is no longer limited to aerospace or lightweight structural use. Architectural and building panels are the largest application segment for aluminum honeycomb, driven by the material’s high strength-to-weight ratio and flat panel performance.

One industry estimate placed the global aluminum honeycomb panel market at USD 3.57 billion in 2024. In the same year, China’s exports of aluminum structures reached USD 5.55 billion, according to trade data from the Observatory of Economic Complexity. These figures show the scale of global demand for aluminum-based panels in construction, furniture and decoration.

For export-oriented projects, fire behavior is often a decisive standard. In Europe, aluminum honeycomb panels are evaluated under EN 13501-1, where Class A1 or A2 is commonly required for high-end architecture. In North America, ASTM E84 is the standard test for surface burning characteristics. Buyers should therefore confirm not only the panel’s nominal fire rating, but also whether the available documentation matches the standard required by the project location.

The Material Foundation: How All-Aluminum Honeycomb Panels Work

Nanbeiwang’s core Honeycomb Panel (NBW-HPB-001) uses an aluminum sheet plus an aluminum honeycomb core with glue-free thermal bonding. This construction gives the panel dimensional stability while keeping the board light enough for cabinet doors, wall panels and ceiling applications.

The main specification sheet for this panel lists:

• Thickness: 5 to 18 mm, customizable
• Panel size: 1220 x 2750 mm, customizable
• Aluminum skin: 0.3 to 1.0 mm
• Core: aluminum honeycomb, glue-free thermal bonding
• Surfaces: PETG, melamine, powder coating or wood grain
• Fire rating: A2
• Formaldehyde: zero under GB18584-2024
• Water absorption: below 1% in a 24-hour test

The product is positioned for board wholesale, furniture manufacturing, custom cabinet factories and decoration projects. That makes it the baseline product family, but project fit depends on where and how the panel will be used.

Whole House Custom Board (NBW-WHB-002): cabinet, door and wall continuity

For whole-house customization and aluminum cabinet manufacturing, Nanbeiwang also lists the Whole House Custom Board (NBW-WHB-002). The product specification describes it as a universal all-aluminum material for cabinets, doors and wall panels, with baby-grade zero formaldehyde and no chemical glue added in the whole process. This model matters when a project needs the same board logic across kitchen cabinets, wardrobes and wall panels, because it is designed to support integrated same-color matching of doors, walls and cabinets.

Aluminum Honeycomb Wall Panel (NBW-WPB-003): large visible surfaces

Wall cladding projects require flat panels, controlled seams and surface options that match the interior design language. The Aluminum Honeycomb Wall Panel (NBW-WPB-003) is an aluminum plate plus honeycomb core board with optional thicknesses of 5 mm, 9 mm, 10 mm and 18 mm. The standard size is 1.22 m x 2.75 m and can be customized.

The wall panel family supports several surface finishes, including solid wood veneer, PETG high gloss, scratch-resistant wood grain, melamine CPL, solid color, powder coating and wood grain heat transfer. It also supports different connection methods, from metal-line and glue-free wall panel connections to welding-type and seamless bamboo-core connections. For projects that need long runs of wall panels, these connection options are part of the material decision.

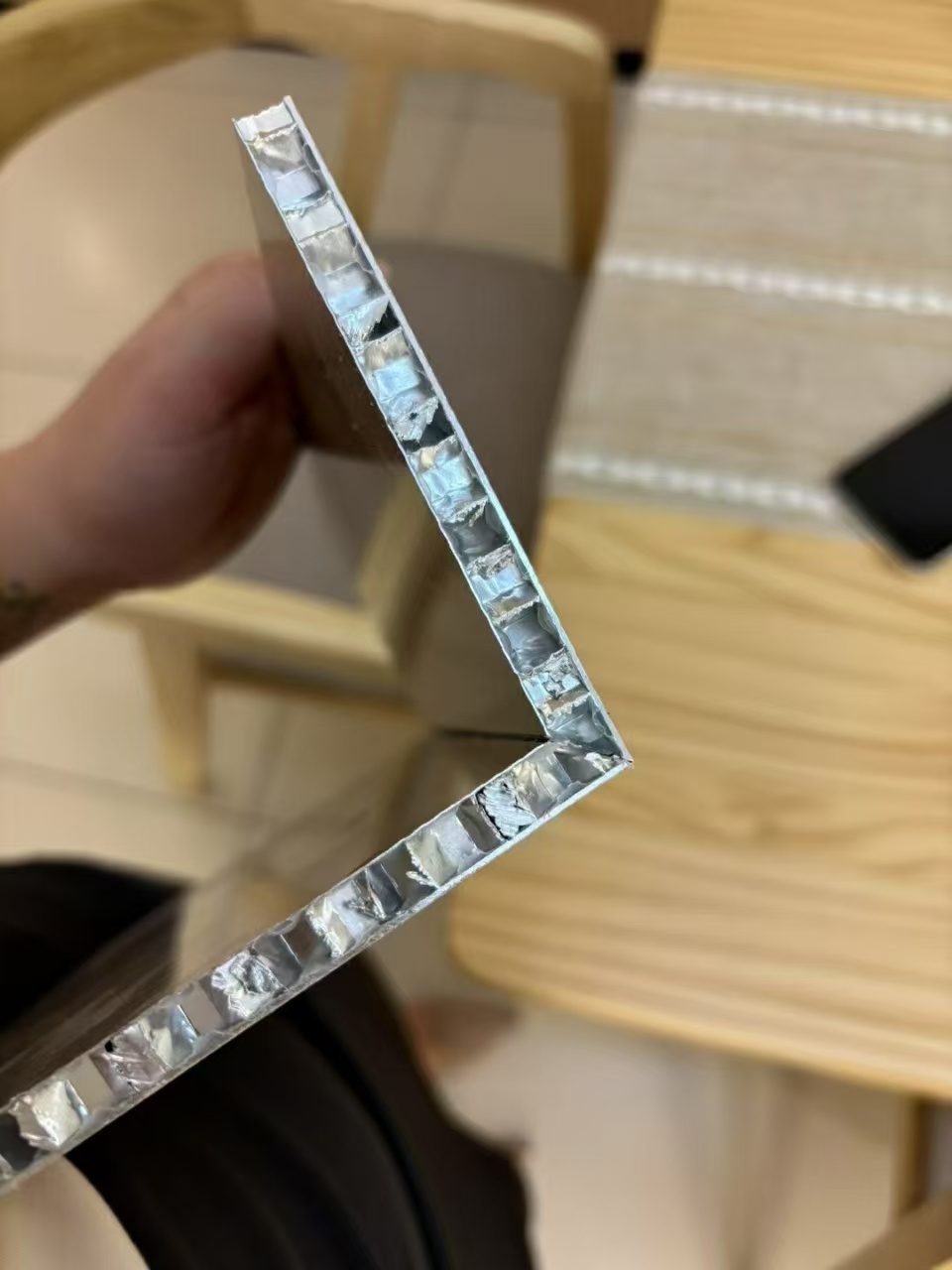

A seamless splicing method helps keep wall surfaces flat and visually continuous.

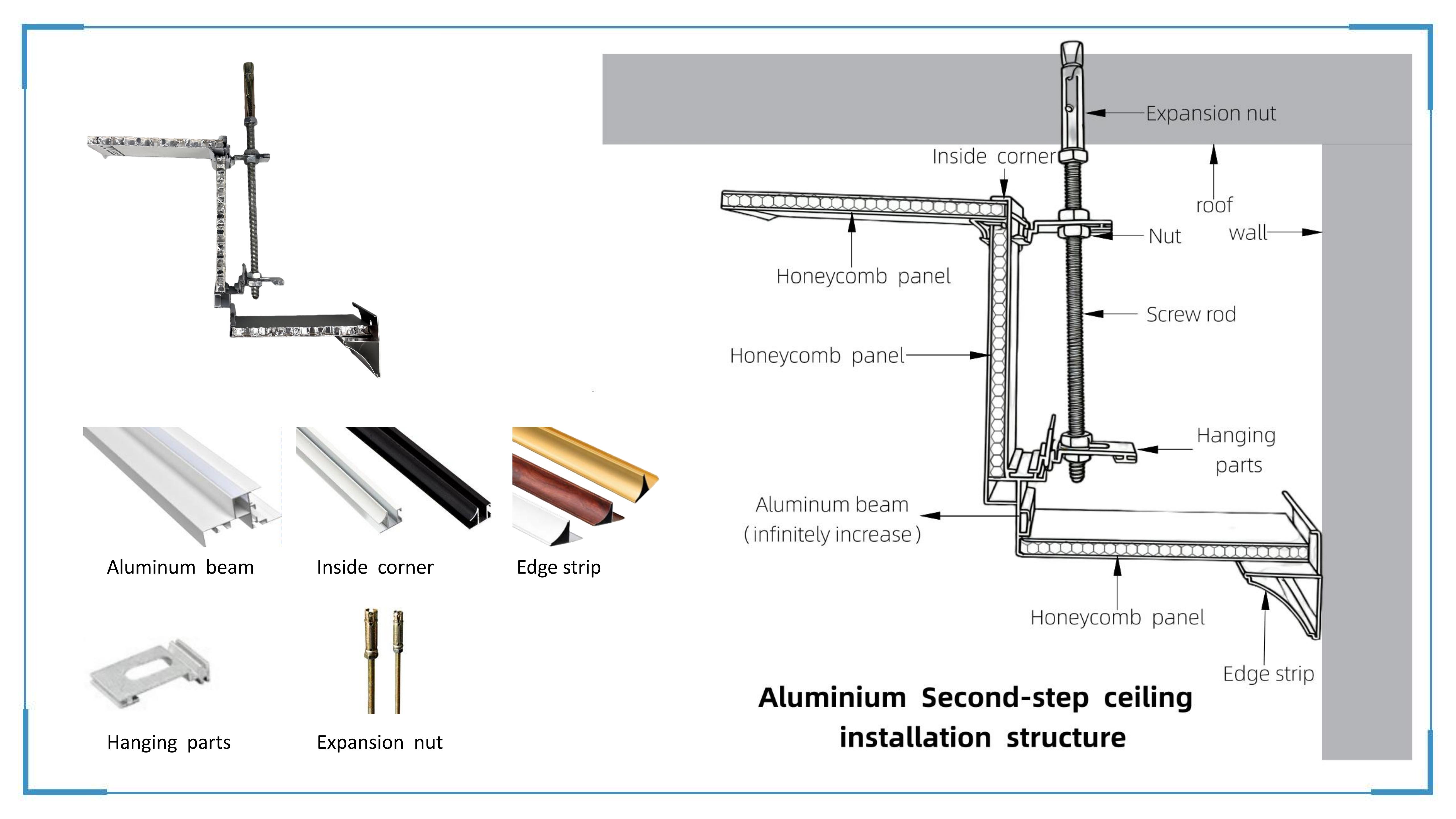

Aluminum Ceiling (NBW-CLB-004): ceilings in wet and large spaces

Ceilings have different requirements from wall panels. They must resist sagging, especially in large integrated boards, and they should be easy to install in kitchen, bathroom and commercial applications. Nanbeiwang’s Aluminum Ceiling (NBW-CLB-004) is classified as a honeycomb ceiling panel and frameless honeycomb panel. The product combines a high-strength aluminum alloy board with a reinforced thickened aluminum honeycomb core, and is described as a large-size integrated board with seamless splicing, moisture and mildew resistance, anti-sagging behavior and high flatness.

Aluminum honeycomb ceilings are relevant for whole-house and commercial ceiling projects.

All-Aluminum Interior Door (NBW-DOR-005): matching doors to wet rooms

When a room uses all-aluminum wall panels and cabinet boards, the interior door is often the missing piece. Nanbeiwang’s All-Aluminum Interior Door (NBW-DOR-005) is an all-aluminum integrated door structure with a door leaf and frame thickness of 45 mm. Frame options include a Korean style at 60 mm, narrow at 50 mm, minimalist at 25 mm, invisible at 55 mm and frameless at 18 mm.

The door can be built with honeycomb, bamboo board or plywood cores, and finished in PETG, wood grain or powder coating. The listed benefits include waterproofing, mildew resistance, dimensional stability and fire-resistant construction, which make the door a relevant product for bathrooms, kitchens and other wet zones.

Color-matched all-aluminum interior doors support the same design language as wall and cabinet panels.

A Step-by-Step Method for Matching Panels to a Project

Project-fit evaluation becomes practical when it follows a repeatable checklist. Use the following steps to match all-aluminum honeycomb panels to an actual order or design.

1. List the project areas and their humidity conditions. Kitchens, bathrooms, laundry spaces and coastal interiors will require waterproof, anti-mold and fire-resistant material properties. Dry areas may allow more flexibility in finish selection.
2. Define what the panel must do. A cabinet side panel, a structural wall panel and a ceiling board each have different load and span behavior. Document whether the panel will be used as a cabinet board, wall panel, structural board or a combination of those roles.
3. Confirm the installation system. All-aluminum honeycomb panels are not installed like ordinary wood boards. The product documentation states that the panel must be used with aluminum profiles and hardware fittings. Profile selection directly affects edge finishing, connections and the overall flatness of the installed system.
4. Select core structure and thickness. For cabinet doors and furniture manufacturing, 5 to 18 mm boards are common. For large wall spans, the 18 mm honeycomb board provides a more rigid base. For ceiling work, the ceiling-specific board with a reinforced thickened honeycomb core is designed to reduce sagging risk.
5. Choose the surface finish by design need. The finish affects both appearance and cleanability. PETG, wood grain, melamine, powder coating and solid color are available across different product models. Door-wall-cabinet same-color matching should be confirmed before ordering separate product groups.
6. Decide between a single product and a system. If the project covers doors, walls, cabinets and ceilings, consider sourcing the full family from one supplier. Nanbeiwang’s all-aluminum product range is used in home decoration, hotel engineering, apartment renovation and commercial ceiling projects.
7. Check customization and quality control. Nanbeiwang supports OEM and customization of thickness, size, color, surface finish and cutting. The company reports a monthly production capacity above 50,000 sheets, a minimum order quantity of one sheet, and 100% full inspection before shipment. Third-party inspection is also supported.

Scenario Use Cases: Where Honeycomb Panel Fit Matters Most

The material structure of an all-aluminum honeycomb panel is only part of the selection. The following scenario patterns appear frequently in cabinet factories, hotel fit-outs and whole-home projects.

Whole-home wet zones: kitchen, bathroom and balcony cabinetry

In these spaces, the board specification is driven by zero formaldehyde, waterproof, fireproof and anti-mold requirements. Nanbeiwang’s product documentation for this scenario notes that the material is used in fixed installations intended for a long service life. The same product logic is applied to kitchen cabinet boards, wardrobe panels, wall panels and structural panels. When installed with aluminum profiles and hardware fittings, the system is meant to stay dimensionally stable in a humid environment.

Cabinet factories and industrial-scale panel supply

A published Nanbeiwang project reference for a B2B factory client and aluminum fabricator in Qatar records supply of more than 2,000,000 sheets for production-line use in aluminum cabinet and wardrobe manufacturing. The case reference lists a long-term partnership, stable monthly orders and zero quality complaints.

For evaluation purposes, the more useful facts are operational: the supplier reports daily shipment of 30 to 50 tons, custom sizing beyond the standard 1.22 m x 2.75 m sheet, 24-hour dispatch from a 10,000-square-meter warehouse, and technical support for cutting optimization. These are the supply-side factors that allow a cabinet factory to turn a panel spec into repeatable production.

Whole-house programs in Southeast Asia and the Middle East

An Indonesian case reference records 800,000 sheets supplied for whole-house customization projects covering cabinets, wardrobes, wall panels and doors. The stated outcomes include stable quality, a high repurchase rate and a 20% reduction in cost. In another multi-market reference covering Malaysia, Saudi Arabia, Singapore, Thailand, South Africa and Kuwait, Nanbeiwang reports more than 10,000 cooperative factories and more than 5,000 completed projects in cabinet production, wholesale supply and engineering support.

These numbers matter less in isolation and more as evidence of one point: project-fit selection is not only about the physical properties of the panel. It is also about whether the manufacturer can supply consistent boards, custom sizes and dependable lead times across multiple project phases.

Honeycomb Panel Products by Project Zone: Quick-Fit Comparison

The table below summarizes how the all-aluminum honeycomb product family maps to common project requirements. All product details are based on Nanbeiwang’s published product specifications.

FAQ

Conclusion: Use Room Fit as the Selection Framework

Choosing a honeycomb panel for a project is more than comparing a generic material spec. The right decision depends on the space, the application, the installation system and the supplier’s ability to maintain consistency across cabinets, walls, ceilings and doors.

Nanbeiwang Aluminum’s product family covers the main points of an all-aluminum project: the standard Honeycomb Panel for cabinet manufacturing and wholesale supply, the Whole House Custom Board for door-wall-cabinet matching, the Aluminum Honeycomb Wall Panel for large surfaces, the Aluminum Ceiling for wet and wide-span ceilings, and the All-Aluminum Interior Door for rooms where water and moisture resistance are non-negotiable.

For any project in the research or evaluation stage, begin with a room-by-room specification. Define the humidity condition, the panel function, the finish and the connection method. Then verify that the supplier can execute customization, inspection and delivery in the same way across the whole package.

For project-specific matching advice, room-by-room product selection and current quotation details, contact the Nanbeiwang Aluminum team.
